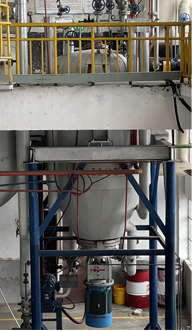

接觸釜又稱為接觸器，是一個帶夾套的壓力釜，內裝一個雙層壁的導流筒，底部有一個高速推進式葉輪。葉輪在旋轉時，推動物料沿容器內壁與導流筒之間的通道向上流動，再?gòu)膶?dǎo)流筒上部流向容器底部，完成循環。導流筒具有導流和加熱的雙重作用，加熱介質通過外層夾套和導流筒對容器內物料加熱，因此接觸釜有三個加熱面，較一般的常壓煉制釜和壓力釜加熱面積大，其傳熱效率高。節能15%左右，減少碳排放34%左右。特別適合于鋰基潤滑脂的生產。圖示如下。

The contact kettle, also known as the contactor, is a pressure reactor with a double-wall heat jacket with a high-speed propelled impeller at the bottom. When the impeller rotates, push the material to flow upward along the channel between the inner wall of the container and inner jacket, and then flow from the upper part of the inner jacket to the bottom of the container to complete the circulation.The inner jacket has the dual role of diversion and heating. The heating medium warms the material in the container through the outer jacket and inner jacket. Therefore, the contact kettle has three heating surfaces, which has a larger heating area than the ordinary pressure kettle and pressure kettle, and its heat transfer efficiency is high.Save energy about 15%, and reduce carbon emissions about 34%. Especially suitable for the production of Lithium grease. The picture shows the following.

接觸釜運行時物料循環流動照片見如下照片

See the following photos of material circulation flow in the contact kettle.

 接觸釜物料循環照片Contact kettle material cycle photo


主要規格型號有Main specifications and models are available：
